AquanOX O₂Pure
The AquanOX Oxygenation & Ultrafiltration System is a three-stage, chemical-free water treatment solution designed for aquaculture, fish farming, and Recirculating Aquaculture Systems (RAS). This system integrates: ✅ Dissolved Oxygen Enhancement ✅ Natural Biofiltration ✅ Ultrafiltration (UF) for Microbial & Particle Removal This system is preloaded into two FRP tanks (8×44″ and 7×44″), followed by a…
System Configuration & Components
| Stage | Component | Function | Tank/Module |
|---|---|---|---|
| Stage 1 | High-Porosity Oxygenation Media | Enhances gas exchange & dissolved oxygen | 8×44″ FRP Tank |
| Stage 2 | Oxygenation Bio-Carrier Media | Supports aerobic bacteria for oxygen stabilization | 7×44″ FRP Tank |
| Stage 3 | Ultrafiltration (UF) Membrane | Removes bacteria, viruses, and fine particles | UF Module (0.01 μm pores) |
Preloaded Media Composition
| Component | Percentage (%) | Function |
|---|---|---|
| Sintered Ceramic Oxygenation Media | 40% | Increases gas exchange, enhances aeration |
| Porous Volcanic Rock (Pumice) | 25% | Natural oxygen diffusion & biofilm support |
| Zeolite + Manganese Coating | 20% | Removes oxygen-consuming contaminants |
| Floating Bio-Media (MBBR Biofilm Carriers) | 15% | Promotes beneficial bacteria growth for stable oxygen levels |
System Technical Specifications
| Specification | Tank 1 (8×44″) | Tank 2 (7×44″) | UF Module |
|---|---|---|---|
| Tank Size | 8″×44″ FRP | 7″×44″ FRP | UF Membrane Housing |
| Tank Volume | 38 Liters | 30 Liters | 10–50 Liters per membrane |
| Media Fill Level | 70% (Freeboard: 30%) | 70% (Freeboard: 30%) | N/A |
| Service Flow Rate | 1.5 – 3.0 GPM | 1.2 – 2.5 GPM | 2.0 – 5.0 GPM |
| Backwash Flow Rate | 3.0 – 4.0 GPM | 2.5 – 3.5 GPM | Automatic flushing |
| Operating Pressure | 20 – 100 psi | 20 – 100 psi | 30 – 60 psi |
| Operating Temperature | 4 – 45°C | 4 – 45°C | 4 – 45°C |
| Filtration Accuracy | N/A | N/A | 0.01 Micron |
| Bacteria/Virus Removal | N/A | N/A | 99.99% |
Key Features & Benefits
✅ Chemical-Free Oxygenation & Purification – Enhances DO levels and removes bacteria without additives.
✅ Improves Fish Health & Growth – Supports high oxygen levels, pathogen reduction, and stable water quality.
✅ Removes Oxygen-Consuming Contaminants – Manganese-coated zeolite eliminates iron, hydrogen sulfide, and ammonia.
✅ UF Module for Microbial Protection – Blocks bacteria, viruses, and fine particles down to 0.01 microns.
✅ High Surface Area for Aeration & Biofiltration – Optimized for gas exchange and bacterial growth.
✅ Long-Lasting Performance – Media lasts 2–3 years with proper maintenance.
Application & Installation Guidelines
| Application | Recommended Flow Rate | System Capacity |
|---|---|---|
| Aquaculture & Fish Farms | 1.5 – 3.0 GPM | Up to 50,000 Liters |
| Recirculating Aquaculture Systems (RAS) | 2.0 – 4.0 GPM | Up to 100,000 Liters |
| Well Water Treatment for Fish Tanks | 1.5 – 3.0 GPM | Up to 10,000 Liters |
Installation Flow Diagram
1️⃣ Water Source (Pond, Well, or Tank Water) →
2️⃣ Pre-Filtration (If Required – Sediment or Carbon Filter) →
3️⃣ AquanOX Oxygenation Tank 1 (8×44″) →
4️⃣ AquanOX Bio-Carrier Tank 2 (7×44″) →
5️⃣ Ultrafiltration (UF Module, 0.01 Microns) →
6️⃣ Fish Tank, Pond, or RAS System
(A flow diagram is included in the document for reference.)
Maintenance & Backwash Instructions
- FRP Tanks: Backwash every 7–14 days, depending on turbidity and contaminant levels.
- UF Module Cleaning: Flush with clean water every 1–2 weeks, replace every 12–18 months.
- Replacement Cycle:
- Media lasts 2–3 years with proper maintenance.
- UF membrane replacement every 12–18 months for optimal filtration.
- System Monitoring: Check DO levels, pressure drop, and flow rates periodically.
Ordering Information & Availability
- Product Code: AQN-OXUF844 / AQN-OXUF744
- Available Sizes: 8×44″ FRP Tank, 7×44″ FRP Tank, UF Module
- Packaging: Delivered prefilled in tanks, ready for installation
- Bulk Orders: Custom configurations available upon request
For more information, installation support, or bulk orders, contact Aquasolve Water Technology.
Related products

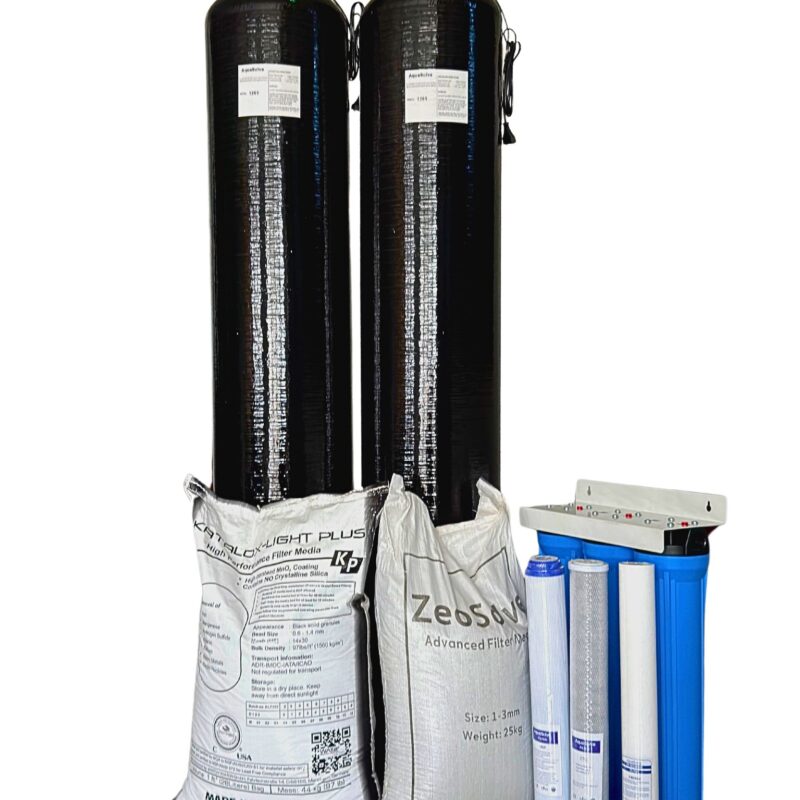

Iron Removal System – Model KL-IR-2T-1052 (Katalox Light Plus, JY Clevalve Automatic Control)
₵20,500.00

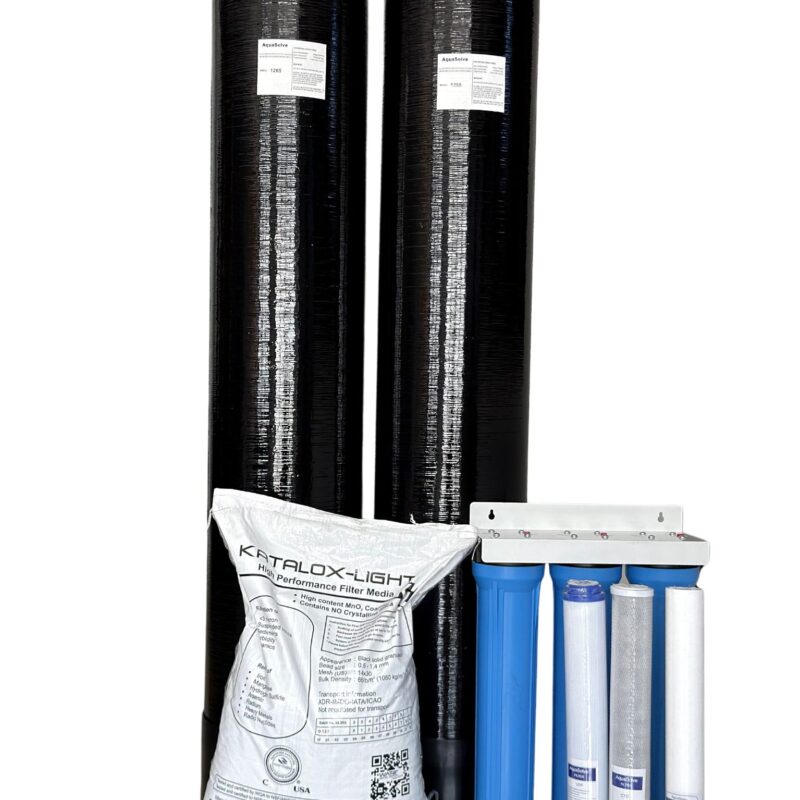

Iron Removal System – Model WH-IR-2T-1052 (Katalox Light)
