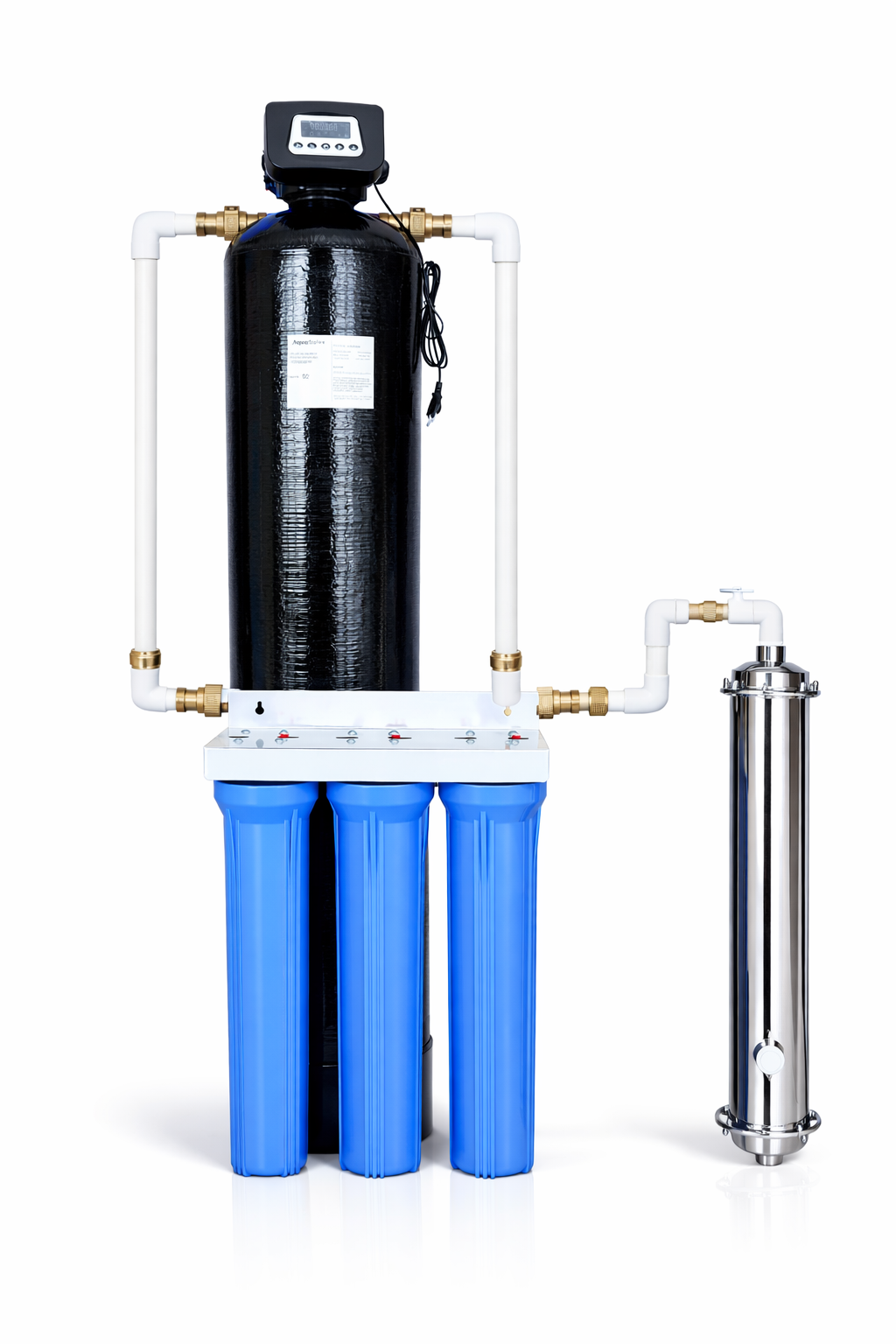

Automatic Whole-House Multimedia Filtration System with UF – Model WHM-Auto-UF1000

Product Specifications

Features and Benefits

• Multimedia Tank Filtration:
  • AquanOX: Removes iron, manganese, and other heavy metals.
  • Activated Carbon: Eliminates chlorine, organic contaminants, and odors for improved taste and safety.
  • Zeolite: Traps fine particles and enhances water clarity.
• 1000 LPH UF System:
  • High-performance PVDF membranes remove bacteria, viruses, and fine impurities without altering water minerals.
• 3-in-1 Micron Filters: Effectively trap sediment, chlorine, and fine particulates in a single cartridge.
• Automatic Operation: The JY Clevalve automates backwashing and rinsing, ensuring hassle-free maintenance.
• Whole-House Application: Provides clean, filtered water to every outlet in your home.
• Eco-Friendly: Operates without chemicals or electricity for UF, reducing costs and environmental impact.
• Durable Build: High-quality FRP tank and components ensure long-term reliability.

Applications

• Residential Use: Supplies filtered, clean water for drinking, cooking, and bathing.
• Light Commercial Use: Ideal for small offices, cafes, and restaurants with moderate water needs.
• Pre-Treatment: Enhances water quality for reverse osmosis systems, boilers, and water softeners.

System Components

1. Multimedia Tank (12″ x 52″): Prefilled with AquanOX, activated carbon, and zeolite for comprehensive filtration.
2. 1000 LPH UF Unit: Features PVDF membranes for ultrafiltration of bacteria, viruses, and fine particles.
3. 3-in-1 Micron Filters: Compact filters combining sediment, chlorine, and fine impurity removal.
4. Automatic Control Head (JY Clevalve): Automates filtration system backwash and rinse cycles.
5. Inlet/Outlet Fittings: Standard 1-inch connections for ease of installation.

Maintenance Guidelines

• Automatic Backwash: The control head schedules backwash and rinse cycles automatically to clean the multimedia tank.
• Replace Micron Filters: Change 3-in-1 micron filters every 6 months or as required based on water quality.
• Replenish Media: Inspect the multimedia tank annually and top up or replace AquanOX, carbon, and zeolite as needed.
• Inspect UF Membranes: Replace UF membranes every 2–3 years depending on usage and fouling levels.

Packaging and Storage

• Packaging Details: The system is securely packed with all components and installation instructions.
• Storage Conditions:
  • Store in a cool, dry area away from direct sunlight.
  • Avoid freezing temperatures before installation.

Warranty

• Coverage: 12-month warranty against manufacturing defects.

Safety Information

• Ensure proper pre-treatment for water with high turbidity or chemical contaminants to extend system life.
• Follow the recommended operating pressure and maintenance schedule to avoid damage.
• Always sanitize the system periodically to prevent microbial growth.
