Fully Automatic Dual-Vessel Multimedia System – Model WH-DUAL-AUTO

Product Specifications

Features and Benefits

• Dual-Vessel System:
  • Two FRP vessels ensure higher flow rates and extended media contact time for efficient filtration and pH correction.
• Multimedia Filtration:
  • Calcite: Adjusts water pH to neutralize acidity and prevent corrosion.
  • Zeolite: Captures fine particles and enhances water clarity.
  • Anthracite: Removes sediment and turbidity for cleaner water.
• Fully Automatic Operation:
  • Each vessel is controlled by a JY Clevalve automatic head, automating backwash and rinse cycles for seamless operation.
• Single Filter Housing:
  • Provides sediment pre-filtration, protecting the multimedia tanks and extending their service life.
• Compact Design:
  • Dual tanks and a compact layout maximize filtration capacity while saving space.
• Durable Materials:
  • High-quality FRP tanks ensure long-term reliability under various water conditions.

Applications

• Residential Use: Ideal for large households requiring clean, neutralized water throughout the home.
• Light Commercial Use: Suitable for small offices, clinics, and light industrial applications.
• Pre-Treatment: Optimizes the performance of downstream systems like reverse osmosis or water softeners.

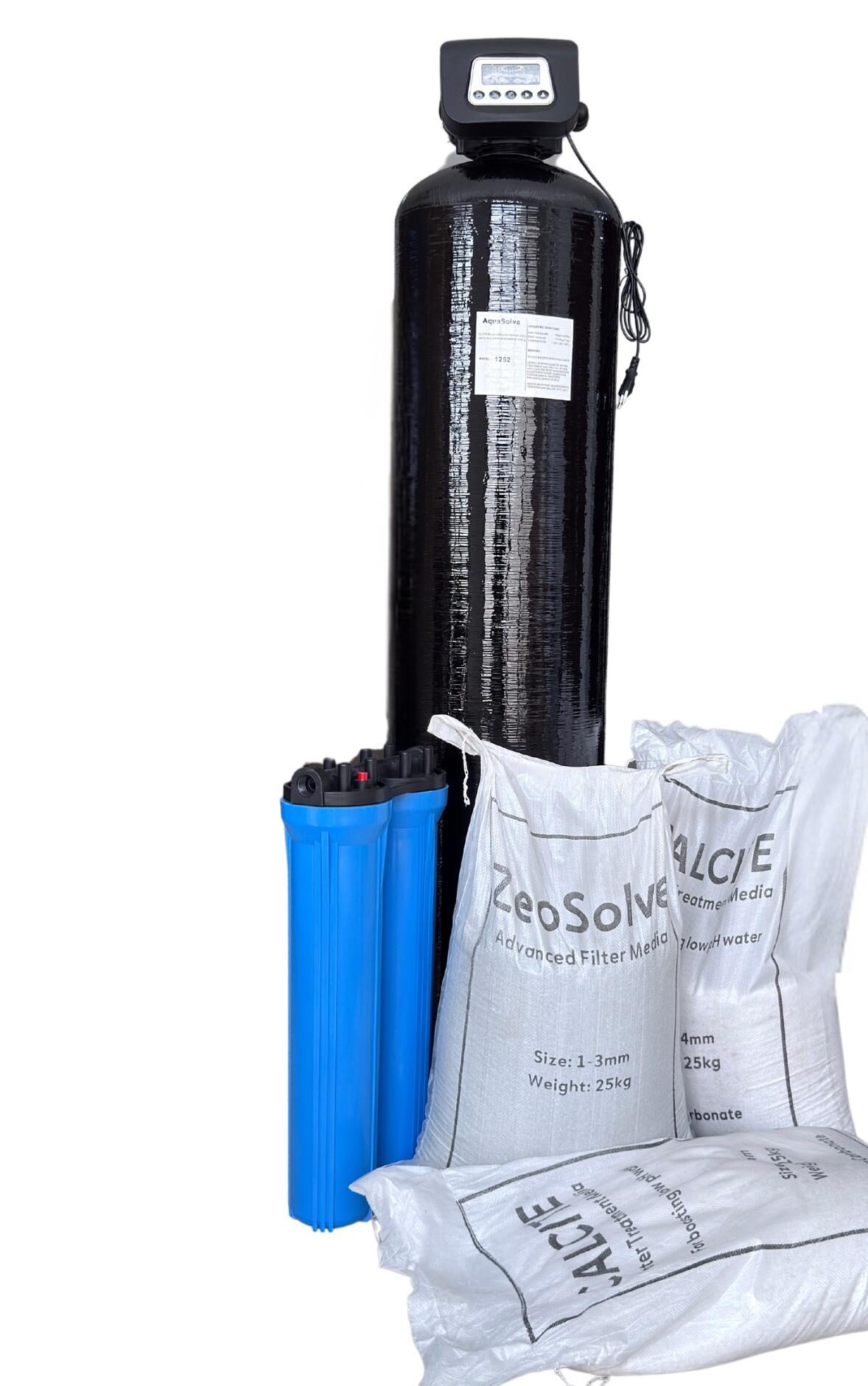

System Components

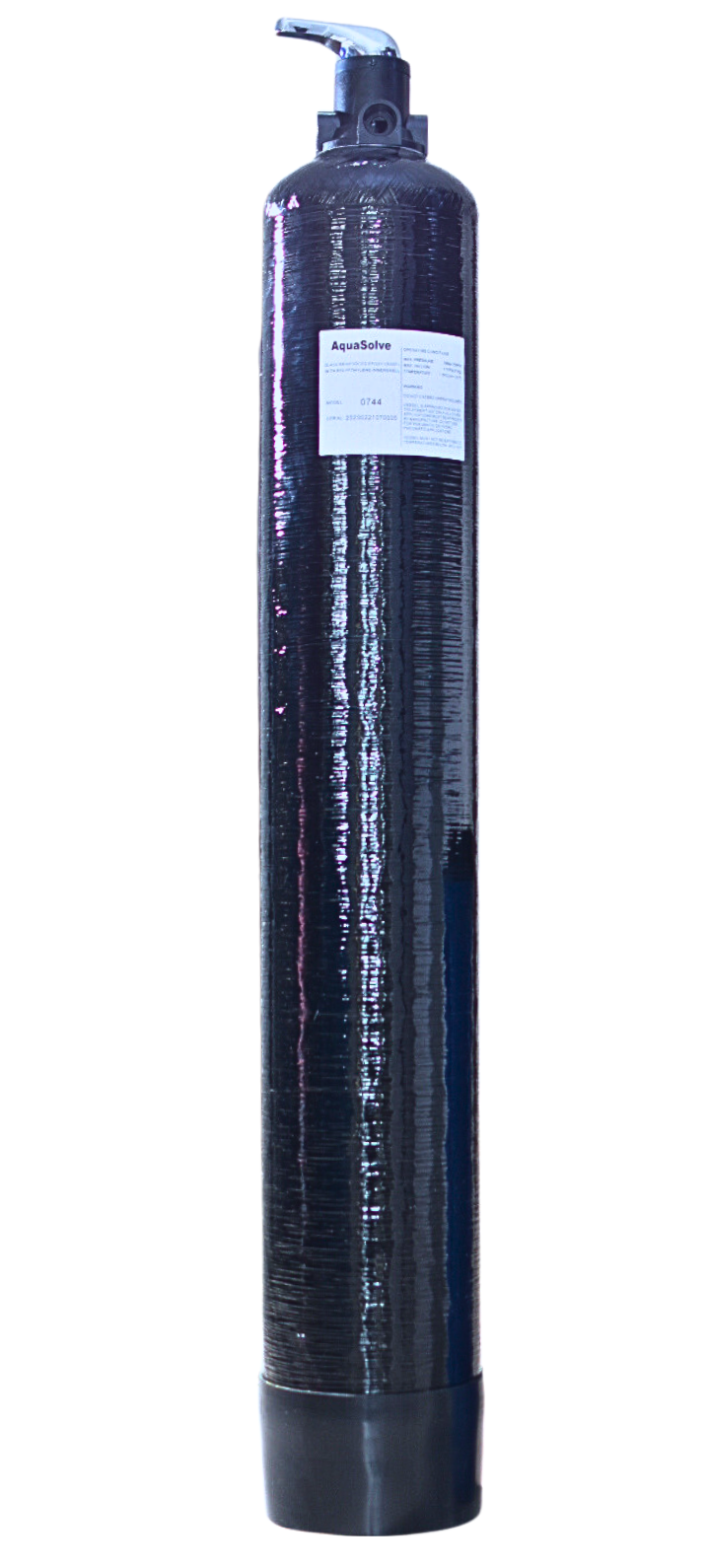

1. Two 12″ x 52″ FRP Vessels: Prefilled with calcite, zeolite, and anthracite for comprehensive filtration.
2. JY Clevalve Automatic Control Heads: Fully automate backwashing and rinsing cycles for each vessel.
3. Single Filter Housing: Accommodates a 20-inch sediment cartridge for pre-filtration.
4. Inlet/Outlet Fittings: Standard 1-inch connections for easy installation.
5. Drainage Outlet: For automated discharge during backwash cycles.

Maintenance Guidelines

• Automatic Backwash: The JY Clevalve control heads schedule backwash and rinse cycles automatically.
• Replace Micron Filter: Change the sediment cartridge every 6 months or as required based on water quality.
• Replenish Media: Inspect the calcite, zeolite, and anthracite media annually and replenish as needed for optimal performance.
• System Inspection: Perform routine checks on control heads, fittings, and tank connections.

Packaging and Storage

• Packaging Details: Securely packed with all components and installation manual included.
• Storage Conditions:
  • Store in a cool, dry area away from direct sunlight.
  • Avoid exposure to freezing temperatures before installation.

Warranty

• Coverage: 12-month warranty against manufacturing defects.

Safety Information

• Ensure proper pre-treatment for water with high turbidity or chemical contamination.
• Do not exceed the recommended operating pressure to avoid damage.
• Sanitize the system periodically to prevent microbial growth.
