Automatic Whole-House Multimedia and pH Control System – Model WH-PH-Auto

Product Specifications

Features and Benefits

• Multimedia Filtration Tank:
  • Calcite: Stabilizes and adjusts pH for water neutrality.
  • Anthracite: Removes suspended solids and turbidity.
  • Activated Carbon: Eliminates chlorine, organic matter, and odors.
  • Zeolite: Captures fine particles and enhances clarity.
• Automatic Control Head (JY Clevalve): Automates backwashing and rinsing cycles, ensuring optimal filtration performance with minimal user intervention.
• 2-in-1 Micron Filters: Dual-function filter cartridges trap fine sediment and protect downstream systems.
• Whole-House Application: Provides treated water for drinking, bathing, and cleaning across all outlets.
• User-Friendly Design: Fully automated operation reduces maintenance time and effort.
• Durable Construction: High-quality materials ensure longevity and reliability.

Applications

• Residential Use: Delivers clean, pH-balanced water throughout the home.
• Light Commercial Use: Ideal for small offices, cafes, and restaurants requiring consistent water quality.
• Pre-Treatment: Enhances water quality for reverse osmosis systems, boilers, and softeners.

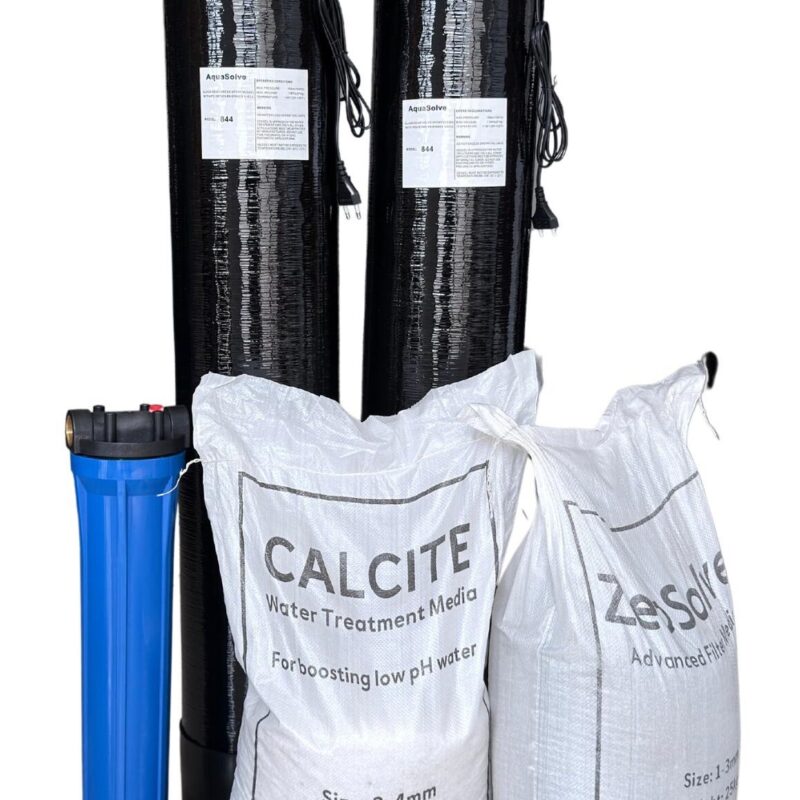

System Components

1. Multimedia Tank (12″ x 52″): Prefilled with calcite, anthracite, activated carbon, and zeolite.
2. JY Clevalve Automatic Head: Programmable control for automatic backwash and rinse cycles.
3. 2-in-1 Micron Filters: 20″ slim filters with 1-micron filtration for fine sediment removal.
4. Inlet/Outlet Fittings: Standard 1-inch connections for easy installation.
5. Drainage Outlet: For automated discharge during backwash cycles.

Maintenance Guidelines

• Automatic Backwash: The JY Clevalve control head schedules backwashing and rinsing cycles automatically based on system usage.
• Replace Micron Filters: Change the 2-in-1 micron filters every 6 months or as needed based on water quality.
• Replenish Media: Inspect media every 1–2 years and top up calcite or other media as needed to maintain performance.
• System Inspection: Perform routine checks on valves, fittings, and the tank to ensure long-term reliability.

Packaging and Storage

• Packaging Details: The system is securely packed with all components, ready for installation.
• Storage Conditions:
  • Store in a cool, dry area away from direct sunlight.
  • Avoid exposure to freezing temperatures before installation.

Warranty

• Coverage: 12-month warranty against manufacturing defects.

Safety Information

• Ensure proper pre-treatment for water with high turbidity or chemical contaminants.
• Do not exceed the recommended operating pressure.
• Use appropriate safety measures during installation and maintenance to avoid damage or accidents.
